Opticis 4K HDMI 2.0 Fiber-optic Extender (HDFX-500-TR)

Opticis 4K HDMI 2.0 Fiber-optic Extender (HDFX-500-TR)


$1500.00  Quantity:

Part Number: HDFX-500-TR
HDFX-500-TR, extends HDMI 2.0 signal up to 200m (656feet) and transmits 4K UHD (4096x2160) at 60Hz over one LC multi-mode fiber. Leading-edge technology of Opticis allows long distance transmission of 4K signal without any video/audio degradation.


HDFX-500-TR is designed compact enough to be fitted into various installation environments. It gives slim, light, easy installation with perfect electrical isolation, but without electrical hazard and interference.
HDFX-500-TR adopted High-Retention HDMI connector, which allows for more retention force than standard HDMI connector, prevents accidental disconnection.
HDFX-500-TR is compliant with HDMI standards features like CEC, EDID and HDCP 2.2 for better installation flexibility and compatibility. It also supports HDR to deliver more realistic, and objective video signal.
HDFX-500-TR can be operated by either USB power or DDC 5V power from HDMI source (Tx only). Auto Power-Switching feature makes it more reliable on its power supply.

Features:

  • Supports HDMI2.0 standards feature
  • Extends up to 4K (4096x2160) at 60Hz, (RGB & YCbCr : 4:4:4)
  • Transmits HDMI 2.0 data up to 200m (656feet) over one LC multi-mode fiber (OM3)
  • Prevents accidental disconnection by using High-Retention HDMI connector
  • Operates by either USB Power(Both Tx and Rx) or DDC 5V from HDMI source (Tx only)
  • Provides Auto Power-Switching feature
  • Provides diagnosis feature
  • Supports 3D contents transmission
  • Complies with CEC, EDID and HDCP 2.2
  • Supports HDR at 10 bit or 12 bit speeds respectively within its maximum bandwidth, 18Gbps

Shipping Group:
  • One (1) Transmitter (Tx) and One (1) Receiver (Rx)
  • Two (2) Micro USB to USB cables
  • Two (2) 5V 1A power adapter
  • User’s Manual
  • One (1) customized male to female HDMI cable (0.2m)


Additional Links:
Brochure.pdf
Data Sheet.pdf
User Manual.pd


Opticis 4K HDMI 2.0 Fiber-optic Extender (HDFX-500-TR)


$1500.00  Quantity:

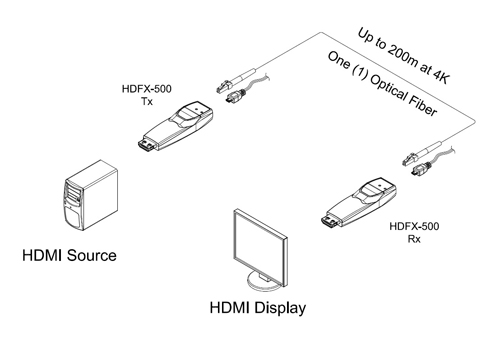

[ Connection Diagram ]
HDFX-500 Diagram
