Opticis DDFX-100-TR Dual-Link DVI Optical Extender | 2560×1600 60Hz, 500m Fiber

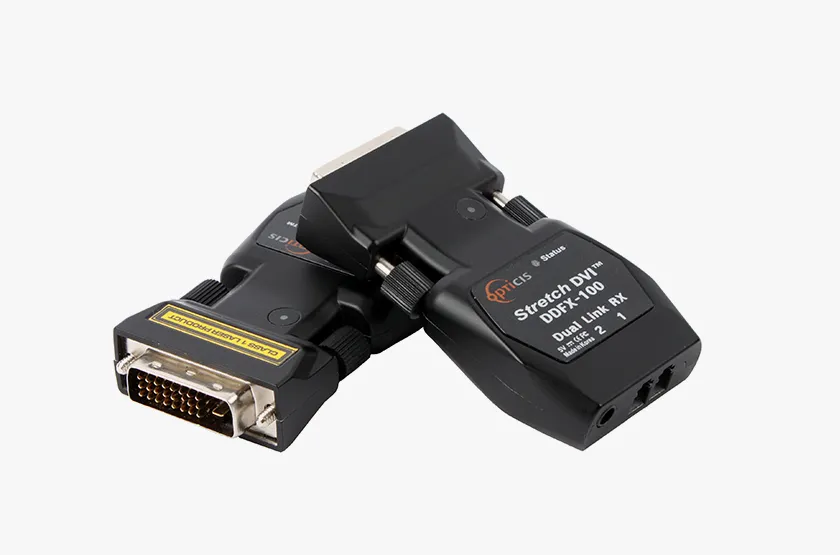

Opticis DDFX-100-TR dual-link DVI optical extender transmitting uncompressed WQXGA video up to 500 meters over two LC multimode fibers.
Max Distance
500m / 1,640ft
Resolution
2560×1600 @ 60Hz
Fiber Type
Dual LC Multimode
Signal Type
Uncompressed Dual-Link DVI
Technical Architecture & Functionality
The Opticis DDFX-100-TR is a dual-link DVI optical extender designed to transmit uncompressed, high-resolution DVI video over long distances using fiber optic cabling. It supports WQXGA (2560×1600) at 60Hz and WQUXGA (3840×2400) at 33Hz, making it ideal for medical imaging, control rooms, film production, and high-resolution visualization systems where signal integrity is non-negotiable.
Using two (2) LC multimode fibers, the DDFX-100-TR extends Dual-Link DVI signals up to 500 meters (1,640 feet) on OM2/OM3 fiber and up to 300 meters (984 feet) on OM1 fiber. This eliminates the distance and EMI limitations of copper DVI cables without requiring distribution amplifiers or repeaters.
The extender features a compact die-cast aluminum enclosure designed for direct attachment to PCs and displays. The rugged metal housing provides excellent EMI shielding and heat dissipation, making it suitable for electrically noisy or industrial environments.
To simplify installation and ensure compatibility across different display resolutions, the DDFX-100-TR includes Self-EDID management, allowing EDID data to be read directly from the display and stored in the transmitter before installation. This prevents resolution negotiation issues in complex AV deployments.
The transmitter supports auto power switching, drawing power from the DVI port when available or falling back to an external +5V adapter. The receiver is powered via +5V DC. Clear LED indicators provide instant feedback on power and signal status.
Key Engineering Advantages
True Dual-Link DVI Over Fiber
Transmit high-resolution Dual-Link DVI video over fiber without compression or latency.
Extreme Distance Extension
Extend WQXGA signals up to 500 meters, far beyond copper DVI limitations.
Installation-Friendly EDID Management
Self-EDID feature prevents resolution and compatibility issues during deployment.
Industrial-Grade Construction
Die-cast aluminum enclosure provides EMI shielding and thermal stability in harsh environments.
Flexible Power Options
Auto power switching allows the transmitter to draw power from DVI or external adapter.
Reliable for Mission-Critical AV
Designed for medical imaging, control rooms, and film production workflows.
Feature Checklist
- Supports Dual-Link DVI video transmission
- Resolutions up to WQXGA (2560×1600) @ 60Hz
- Supports WQUXGA (3840×2400) @ 33Hz
- Extends signals up to:
- 500m (1,640ft) over two LC multimode fibers (OM2/OM3)
- 300m (984ft) over OM1 fiber
- Uncompressed, zero-latency video transmission
- Self-EDID management (read & restore from display)
- Compact die-cast aluminum enclosure
- Excellent EMI shielding and thermal dissipation
- Auto power switching on transmitter
- LED indicators for power and signal status
- Class 1 laser eye safety
- FCC and CE certified
Technical Specifications
Validated performance benchmarks and physical parameters.
- Part Number
- DDFX-100-TR
- Brand
- Opticis
- Product Type
- Dual-Link DVI Optical Extender (Tx/Rx Set)
- Video Interface
- Dual-Link DVI
- Max Resolution
- 2560×1600 @ 60Hz (WQXGA)
- Additional Resolution
- 3840×2400 @ 33Hz (WQUXGA)
- Fiber Type
- Two (2) LC Multimode Fibers (OM2/OM3)
- Max Distance
- 500m (OM2/OM3), 300m (OM1)
- EDID Management
- Self-EDID (read & restore)
- Power Input (TX)
- +5V DC (auto-switching or DVI-powered)
- Power Input (RX)
- +5V DC
- Operating Temp
- 0°C to 50°C
- Storage Temp
- -30°C to 70°C
- Enclosure
- Die-cast aluminum
- Dimensions
- 39 × 72 × 15 mm
- Certifications
- FCC, CE, Class 1 Laser Eye Safety
Documentation & Drivers
Package Contents
- DDFX-100-TR Transmitter
- DDFX-100-TR Receiver
- Power Adapters
- User Manual
Wiring & Connection Diagram
Inspect module pinouts, transmitter/receiver cabling, and power connections.
Target Application Scenarios
Engineered for harsh industrial automation, medical suites, aerospace testing, and command centers where signal integrity is non-negotiable.
Sector Compliance & Use Cases
- Medical imaging systems
- Video walls and control rooms
- Film production and post-production
- Military and aerospace visualization
- High-resolution industrial displays
