Infrared RS-232 • IrDA 1.0

ACTiSYS IR 220L / 220L+ / 220LN / 200L

IR220L+

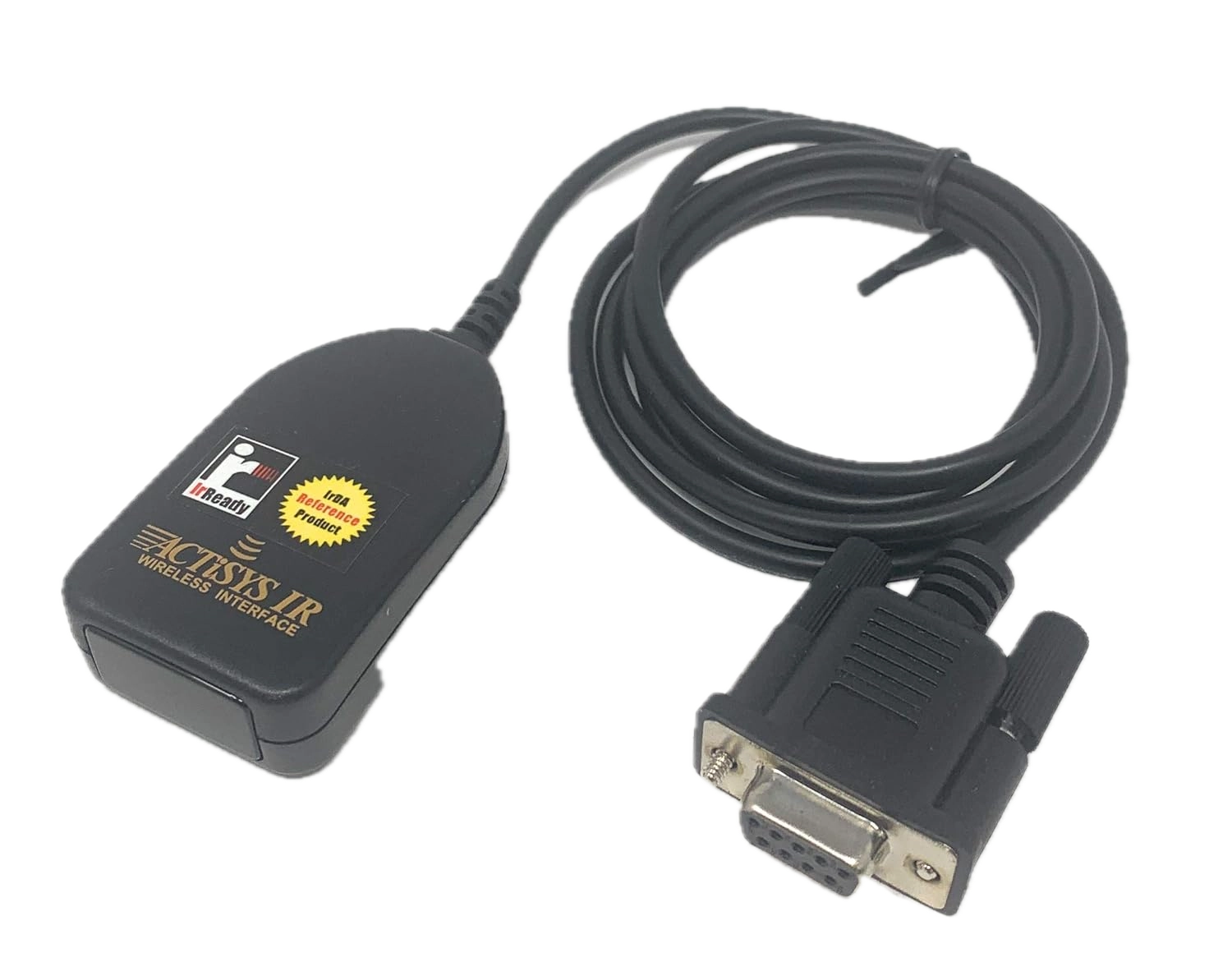

ActiSYS IR220L+

Turn any RS-232 serial port into a cable-free infrared link—perfect for legacy notebooks, PDAs, printers, scanners, medical and data-terminal devices. No external power required.

Up to 115.2 kbps Range: up to 100 cm Powered by RS-232 DB9F, 1 m cable
$140.00
Request a Quote

Native support in many IR sync suites; Windows 95/98/98SE/2000 & Linux commonly supported. Windows NT 4.0 requires third-party software.

Cable-free Serial

Replace short RS-232 runs with an IR link for sync, backup, and terminal access.

Plug-Powered

Draws power from the RS-232 port—no wall adapter, no batteries.

Multi-Standard

IR200L: IrDA 1.0 & ASK-IR (500 kHz) for devices like Sharp Wizard/Zaurus and Apple Newton.

Rugged Option

Ruggedized IR220LR variant available for harsher environments.

Choose Your Model

IR200L — Multi-Standard

IrDA 1.0 & ASK-IR (500 kHz)

  • Speeds: 9.6–115.2 kbps (IrDA), 9.6/19.2 kbps (ASK)
  • Range: up to 100 cm
  • Best for Sharp Wizard/Zaurus, Apple Newton

IR220L — IrDA 1.0

Core IrDA speeds

  • Speeds: 9.6, 19.2, 57.6, 115.2 kbps
  • Range: up to 100 cm
  • General IrDA notebooks/PDAs

IR220L+ — IrDA 1.0

Adds 38.4 kbps mode

  • Speeds: 9.6, 19.2, 38.4, 57.6, 115.2 kbps
  • Range: up to 100 cm
  • Broad IrDA compatibility

IR220LN — RS-232 IR (Non-IrDA)

Cable replacement (pair required)

  • Speeds: up to 115.2 kbps
  • Range: up to 100 cm
  • Use one on each side of the link

Compare Models

Model Protocol Speeds Range Power Notes
IR200L IrDA 1.0 & ASK-IR (500 kHz) IrDA: 9.6–115.2 kbps; ASK: 9.6/19.2 kbps Up to 100 cm RS-232 (no external) Sharp Wizard/Zaurus, Apple Newton support
IR220L IrDA 1.0 9.6, 19.2, 57.6, 115.2 kbps Up to 100 cm RS-232 (no external) General IrDA devices
IR220L+ IrDA 1.0 9.6, 19.2, 38.4, 57.6, 115.2 kbps Up to 100 cm RS-232 (no external) Extra 38.4 kbps mode
IR220LN Non-IrDA (RS-232 IR) Up to 115.2 kbps Up to 100 cm RS-232 (no external) Requires a unit on both ends
IR220LR IrDA 1.0 (ruggedized) Similar to IR220L Up to 100 cm RS-232 (no external) Rugged housing option

All models include a 1 m (39.4 in) cable with DB9F connector and an IR head that can be mounted with the included Velcro pad.

Specifications

Interface
RS-232 serial to Infrared (IrDA 1.0 unless noted)
Sub-carrier
IR200L adds ASK-IR (500 kHz) support
Communication Speeds
IR200L: 9.6–115.2 kbps (IrDA), 9.6/19.2 kbps (ASK)
IR220L: 9.6, 19.2, 57.6, 115.2 kbps
IR220L+: 9.6, 19.2, 38.4, 57.6, 115.2 kbps
IR220LN: up to 115.2 kbps (Non-IrDA)
Range
Up to 100 cm (all models)
Connector
DB9F on integrated 1.0 m (100 ± 3 cm / 3.28 ± 0.1 ft) cable
Power
Powered by RS-232 port; no external supply
Consumption
0.30 W (peak)
Dimensions
IR200L/220L/220L+: 2.4" L × 1.4" W × 0.74" H
Weight
IR200L: 2.1 oz (56.9 g) • IR220L/220L+: 2.4 oz (65.0 g)
Mounting
IR head with Velcro™ pad for easy desktop placement

What’s in the Box

  • Selected ACTiSYS IR adapter (model as ordered)
  • Integrated 1 m cable with DB9F connector
  • Velcro mounting pad
  • Quick start information

Ruggedized IR220LR model available separately.

Compatibility & Supported Devices

Operating Systems & Drivers
  • Windows: 95 (IR driver 2.0), 98/98 SE, 2000 (native IrDA). Windows NT 4.0 is not compatible without third-party software.
  • Linux: commonly supported via IrDA stacks.
  • Sync Software: Puma Tranxit Pro and many PDA link suites.
Handhelds / PDAs / Terminals
  • C-Pen; AlphaSmart Keyboard
  • Palm Pilot III, V, VII (Windows IrDA + free third-party app)
  • Psion Series 3c / Series 5
  • All Windows CE 2.0 H/PC devices
  • IR200L only: Sharp Wizard, Sharp Zaurus (incl. Power Zaurus SE500); Apple Newton
  • Industrial terminals: Norand, LXE, etc.
Printers
  • HP LaserJet 5MP, 6P
  • Other IrDA-capable printers
Mobile Phones
  • Ericsson SH888 / SF888; Motorola 2000 series
  • Siemens S25; Alcatel; Sharp PMC
  • Nokia 9000/9000i/9000il/9110; 8810/8210/8850/7110 (Windows IrDA + free LogoManager)
  • Nokia 6110, 6150 (requires free third-party software)
  • Nokia 2xxx series are not compatible.
Digital Cameras
  • Sony DSC-F1; Sharp VE-LS5; Kodak models; others with IrDA
Computers
  • All desktop PCs with RS-232 DB9
  • All notebook PCs (using the adapter on a desktop’s RS-232 port to talk to the notebook’s IrDA)

Device examples are representative. IrDA or ASK-IR support may vary by firmware and software stack.

Notes & FAQs

Do I need an external power supply?

No. All models draw power directly from the RS-232 port (peak ~0.30 W).

Which model should I pick?

Use IR200L if you need legacy ASK-IR (Sharp Wizard/Zaurus, Apple Newton). For standard IrDA on notebooks/PDAs, choose IR220L or IR220L+ (adds 38.4 kbps). To replace a serial cable without IrDA, use a pair of IR220LN units.

Can I mount the IR head on my desk?

Yes, the IR head includes a Velcro™ pad for easy placement.
