Newnex FireNEX-UDC Panel-Mount USB-C Extension Cable | Active Repeater • 10Gbps USB 3.2 Gen 2 • DP Alt Mode • 240W PD Pass-Through
Panel-mount USB-C active repeater: 10Gbps USB 3.2 Gen 2, DP Alt Mode 4K@60Hz, PD 3.1 pass-through up to 240W.
In stock SKU
FIRENEX-UDC-2M
$179.00USD
Model
FIRENEXUDC
USB 3.2 Gen 2 up to 10Gbps
DP Alt Mode (DP 1.4) up to 4K@60Hz
PD 3.1 pass-through up to 240W (48V/5A)
Neutrik D-Series panel mount
Active repeater, hub tier count 0
FireNEX-UDC Panel-Mount USB-C Active Repeater | 10Gbps • DP Alt Mode • 240W PD
Panel-mount USB-C active repeater: 10Gbps USB 3.2 Gen 2, DP Alt Mode 4K@60Hz, PD 3.1 pass-through up to 240W.

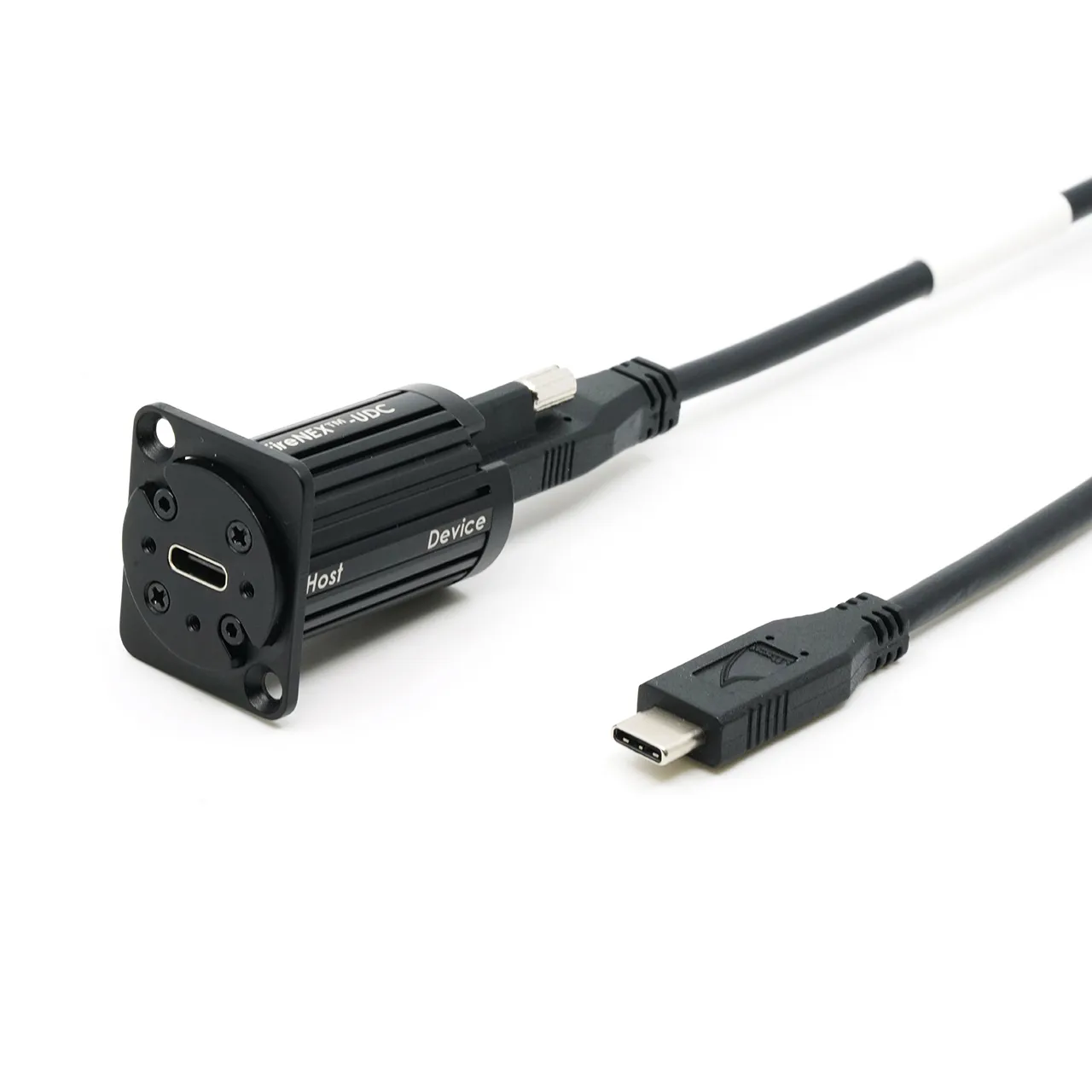

Newnex FireNEX™-UDC is a panel-mount USB-C extension solution with an attached active repeater built into a rugged, EMI-resistant metal enclosure. It’s made for the real-world problem of USB-C: the second you try to run it “a little farther,” everything gets flaky.
FireNEX-UDC boosts USB 3.2 Gen 2 (10Gbps) and DisplayPort Alt Mode to extend USB-C connections up to 10 meters, while maintaining signal integrity. It can also be used as a USB-C to USB-C adapter/repeater to improve reliability between mixed cables and devices.
It supports DP Alt Mode video (DP v1.4 / HBR3) including 4K@60Hz, and provides bidirectional USB Power Delivery (PD) 3.1 pass-through up to 240W (48V/5A). The unit is USB bus-powered, so it requires no external power input, and is designed to be plug-and-play for Windows, Mac, and Linux.
Key advantages
Active Repeater, Not a Hub
Boosts signal without adding USB hub tiers (tier count: 0), keeping device chains simpler.
10Gbps Where It Matters
Supports USB 3.2 Gen 2 up to 10Gbps (USB 3.2 requires 2-lane DP mode).
DP Alt Mode Display Support
Supports DP 1.4 Alt Mode including 4K@60Hz for professional USB-C display workflows.
240W PD Pass-Through
Bidirectional PD 3.1 pass-through up to 48V/5A (240W) for high-power USB-C applications.
Built for Installers
Neutrik D-Series panel mount and screw-locking USB-C ports reduce failure points in real deployments.
Plug-and-Play OS Support
Designed for straightforward use across Windows, Mac, and Linux without extra fuss.
Feature highlights
- Active USB-C repeater boosts signal integrity for longer USB-C runs
- USB 3.2 Gen 2 up to 10Gbps
- Backward compatible with USB 3.0 / USB 2.0
- DP Alt Mode support, including 4K@60Hz
- Bidirectional PD 3.1 pass-through up to 240W (48V/5A)
- USB bus-powered (no additional power input required)
- Neutrik D-Series panel mount ready
- Metal enclosure for durability and EMI protection
- Plug-and-play: Windows, Mac, Linux
Applications
Where this solution fits.
Deploy in environments that need long-distance, interference-free connectivity with zero compression.
- Panel-mount USB-C extension for kiosks, consoles, and rack systems

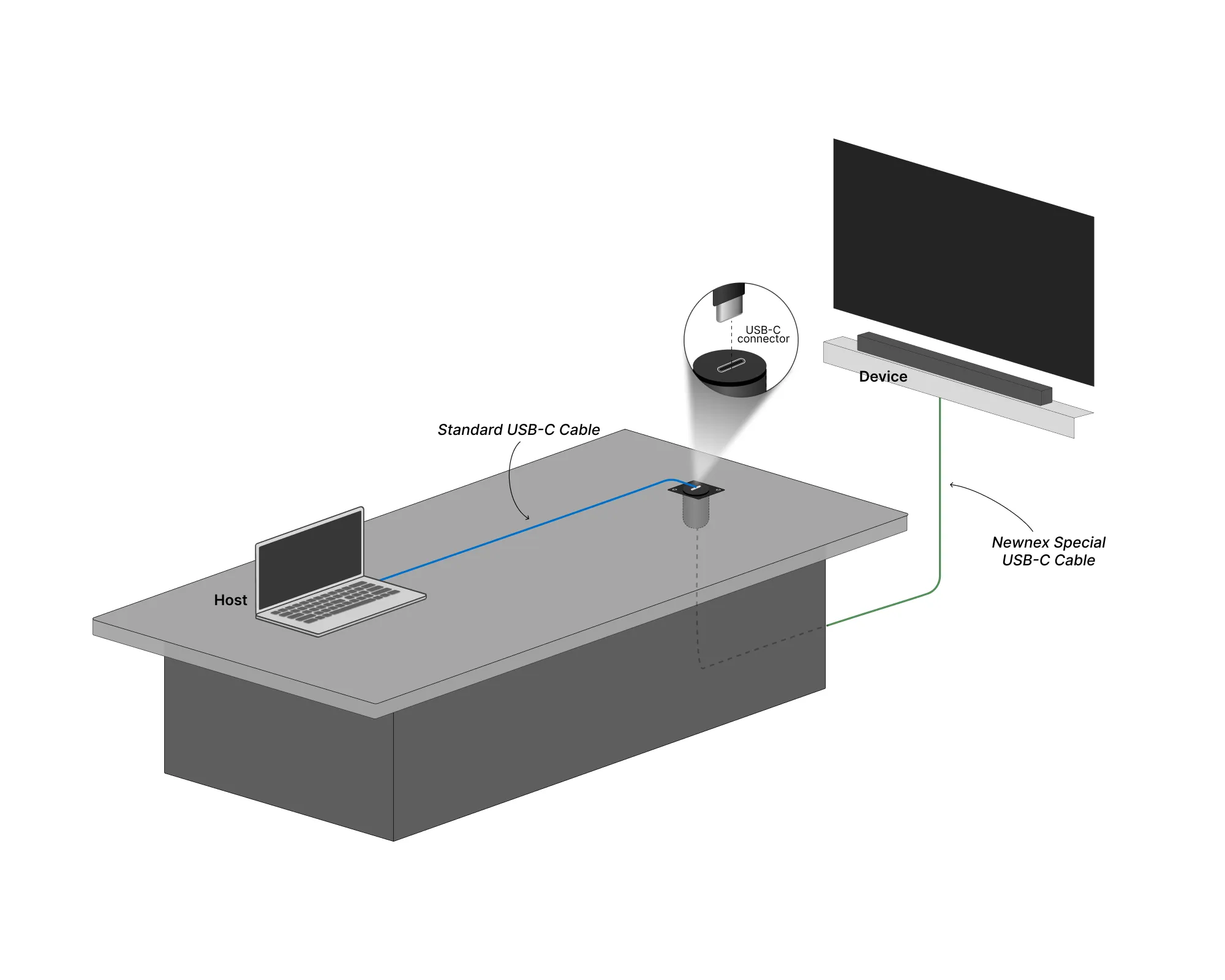

- Conference room and collaboration installs needing clean, repeatable USB-C wall/panel pass-through
- Industrial and lab environments where cable runs and EMI are constant problems
- High-power USB-C setups where **PD pass-through** matters (up to 240W)
- AV workflows using **DP Alt Mode** over USB-C
Specifications
- Part Number
- FireNEX-UDC
- Product Type
- Panel-mount USB-C extension cable with active repeater
- Max USB Data Rate
- USB 3.2 Gen 2 (10Gbps)
- USB Backward Compatibility
- USB 3.2 Gen 1 (5Gbps), USB 2.0/1.1 compatible
- USB Hub Tier Count
- 0
- USB Note
- USB 3.2 supported only with **2-lane DP mode**; both modes support USB 2.0/1.1
- DisplayPort Alt Mode
- DP v1.4 (HBR3 source & device)
- DP (2-lane)
- Up to **one 4K@60Hz**, or **two 2K@60Hz**
- DP (4-lane)
- Up to **one 8K@60Hz**, or **two 4K@60Hz**
- Panel Mount Style
- Neutrik D-Series
- Upstream Port (Host)
- USB-C Female (with screw-locking)
- Downstream Port (Device)
- USB-C Female (with screw-locking)
- Power Delivery
- Bidirectional PD 3.1 pass-through up to **48V / 5A (240W)**
- Power Source
- USB bus-powered (no external power input)
- Operating Temperature
- 0°C to 40°C (32°F to 104°F)
- Operating Humidity
- 10% to 90% RH, non-condensing
- Compliance
- FCC, CE; RoHS, REACH
- Warranty
- 1-year manufacturer warranty
Downloads
Shipping group
- FireNEX-UDC panel-mount active repeater (1)
