Opticis DPFX-100-TR DisplayPort 1.1 Optical Extender | 2560×1600 @ 60Hz • 200 m LC Fiber
DisplayPort 1.1 fiber extender supporting up to 2560×1600 @ 60Hz over dual LC multimode fiber up to 200 m with zero compression or latency.
Part Number:
DPFX100TR In stock Model
DPFX100TR
2560×1600 @ 60Hz
200 m over fiber
10.8 Gbps
Dual LC Multimode
Opticis DPFX-100-TR DisplayPort 1.1 Fiber Extender | 200m Dual LC, WQXGA
DisplayPort 1.1 fiber extender supporting up to 2560×1600 @ 60Hz over dual LC multimode fiber up to 200 m with zero compression or latency.

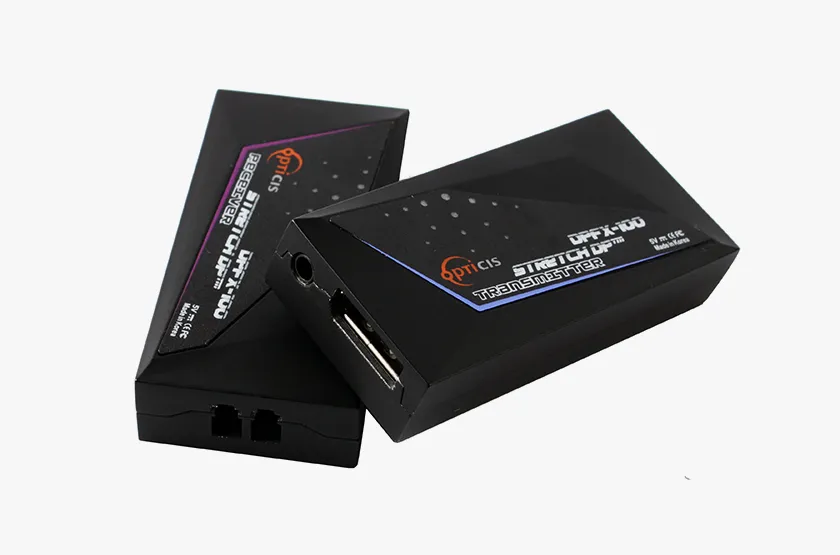

The Opticis DPFX-100-TR is a compact DisplayPort 1.1 optical extender designed for professional AV, medical imaging, and control room environments that require long-distance DisplayPort transmission with complete electrical isolation.

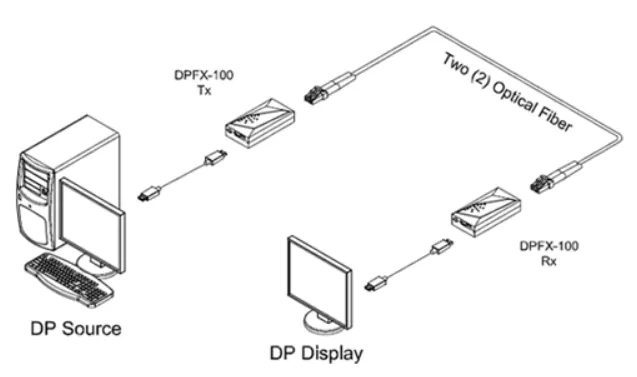

Using two LC multimode fiber links (50/125 µm) between the transmitter and receiver, the DPFX-100-TR extends WQXGA (2560×1600) @ 60Hz and 4K (3840×2160) @ 30Hz DisplayPort signals up to 200 meters (656 feet) with no compression, no scaling, and no latency. The fiber-only connection eliminates EMI and ground-loop issues, making it ideal for electrically noisy or safety-critical installations.
The system provides a total bandwidth of 10.8 Gbps (2.7 Gbps per lane) and supports auxiliary channel communication, ensuring stable link training and display handshaking. For flexible installation, each module features a DisplayPort receptacle and includes short DP copper cables to accommodate tight spaces and varied connector orientations.
Power can be supplied either via the included USB-to-DC cables or the bundled 5V DC adapters, allowing easy deployment in racks, behind displays, or inside equipment enclosures without dedicated power infrastructure.
Key advantages
True Fiber Isolation
Pure optical transmission eliminates EMI, ground loops, and electrical hazards in sensitive environments.
Zero Compression Video
Uncompressed DisplayPort signals preserve pixel-perfect image quality over long distances.
Flexible Power Options
Operate using USB power or included 5V adapters for easy deployment in racks or behind displays.
Compact Module Design
Small form factor fits tight installation spaces without requiring bulky enclosures.
Installer Friendly
Includes short DisplayPort cables to simplify mounting and accommodate connector orientation.
Professional-Grade Reliability
Built for medical, military, and control room environments requiring stable long-distance video.
Feature highlights
- DisplayPort 1.1a compliant optical extender
- Extends WQXGA (2560×1600) @ 60Hz and 4K @ 30Hz
- Transmission up to 200 m (656 ft) over dual LC multimode fiber (50/125 µm)
- 10.8 Gbps total bandwidth (2.7 Gbps per lane)
- Uncompressed, zero-latency transmission
- Full electrical isolation with negligible EMI emission
- Supports auxiliary channel and DP link training
- Plug & Play operation
- Compact module design for tight installation spaces
- Powered via USB or 5V DC adapters
- Includes short DP copper cables for flexible mounting
Applications
Where this solution fits.
Deploy in environments that need long-distance, interference-free connectivity with zero compression.
- Medical imaging and surgical display systems
- Control rooms and command centers
- Simulation and training environments
- Military and industrial visualization
- EMI-sensitive installations
Specifications
- Part Number
- DPFX-100-TR
- DisplayPort Standard
- DisplayPort 1.1a
- Max Resolution
- 2560×1600 @ 60Hz, 3840×2160 @ 30Hz
- Fiber Type
- Dual LC multimode fiber (50/125 µm)
- Max Distance
- 200 m (656 ft)
- Total Bandwidth
- 10.8 Gbps (2.7 Gbps per lane)
- Auxiliary Channel
- Supported
- Power Input
- +5V, 1A (USB or DC adapter)
- Operating Temperature
- 0°C to 50°C
- Storage Temperature
- -30°C to 70°C
- Dimensions (W × D × H)
- 35 × 72 × 16 mm
- Certifications
- CE, FCC, UL IT, Class 1 Laser Eye Safety
Downloads
Shipping group
- DPFX-100-TR Transmitter
- DPFX-100-TR Receiver
- Two (2) short DisplayPort copper cables
- Two (2) USB-to-DC power cables
- Two (2) 5V DC power adapters
- 5-pin adapter
- User Manual
