Opticis DPX-1F12-TR DisplayPort 1.2 Fiber Extender | 4K60, 300m, Diagnostics
DisplayPort 1.2 optical extender supporting uncompressed 4K@60Hz over a single LC fiber up to 300m, with built-in diagnostics and remote management.
Part Number:
DPX1F12TR In stock Model
DPX1F12TR
DisplayPort 1.2
4K60
300m / 984ft
Diagnostics Enabled
Opticis DisplayPort 1.2 One-Fiber Optical Extender with Diagnostics, 4K60, 300m (DPX-1F12-TR)
DisplayPort 1.2 optical extender supporting uncompressed 4K@60Hz over a single LC fiber up to 300m, with built-in diagnostics and remote management.

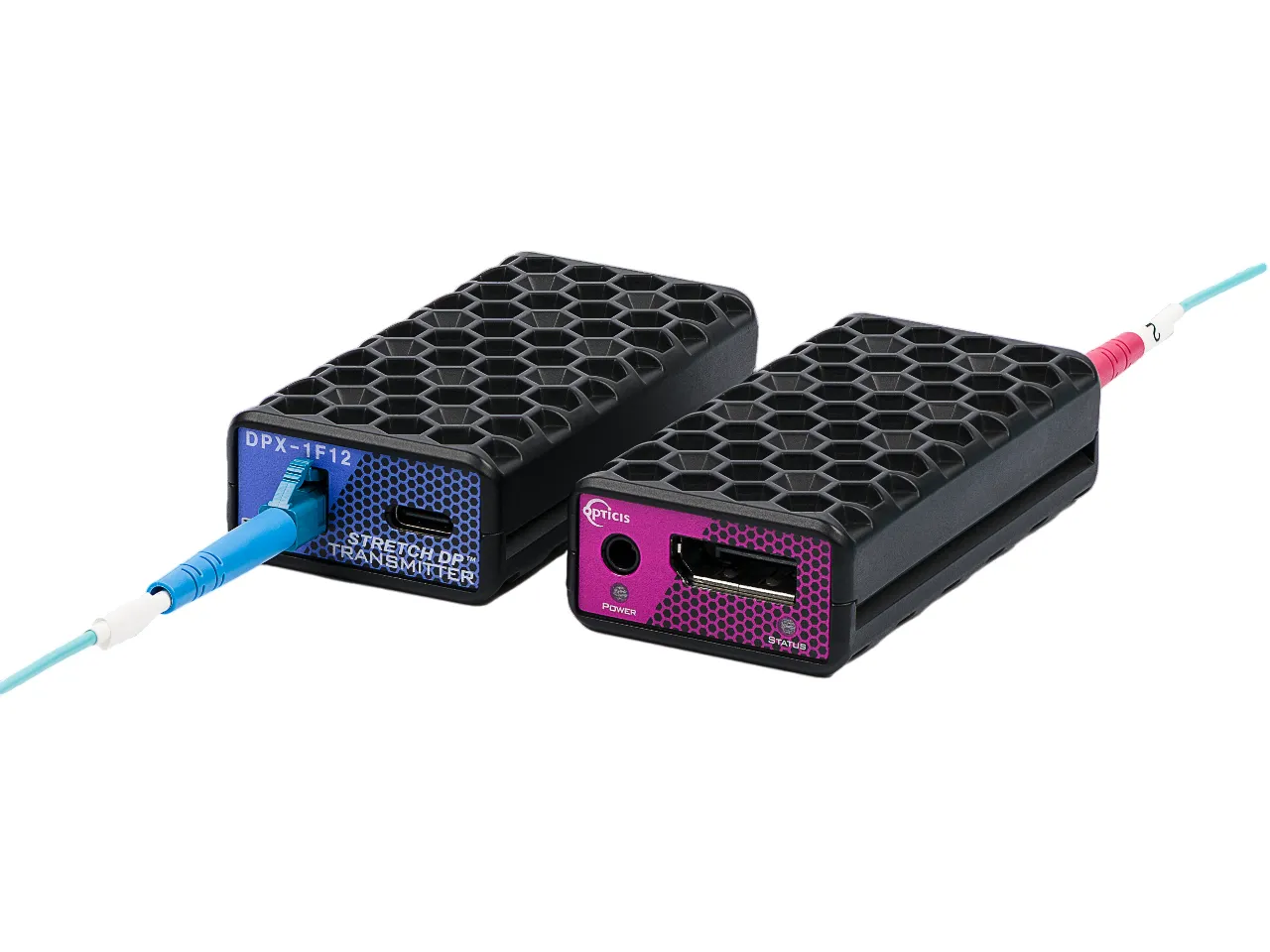

The Opticis DPX-1F12-TR is a high-performance DisplayPort 1.2 one-fiber optical extender designed to transmit uncompressed 4K UHD (4096×2160) video at 60Hz over long distances using a single LC multi-mode fiber (OM3).
Capable of extending DisplayPort signals up to 300 meters (984 feet), the DPX-1F12-TR delivers transparent, full-bandwidth DisplayPort 1.2 performance with negligible EMI emission, making it ideal for demanding professional AV environments.

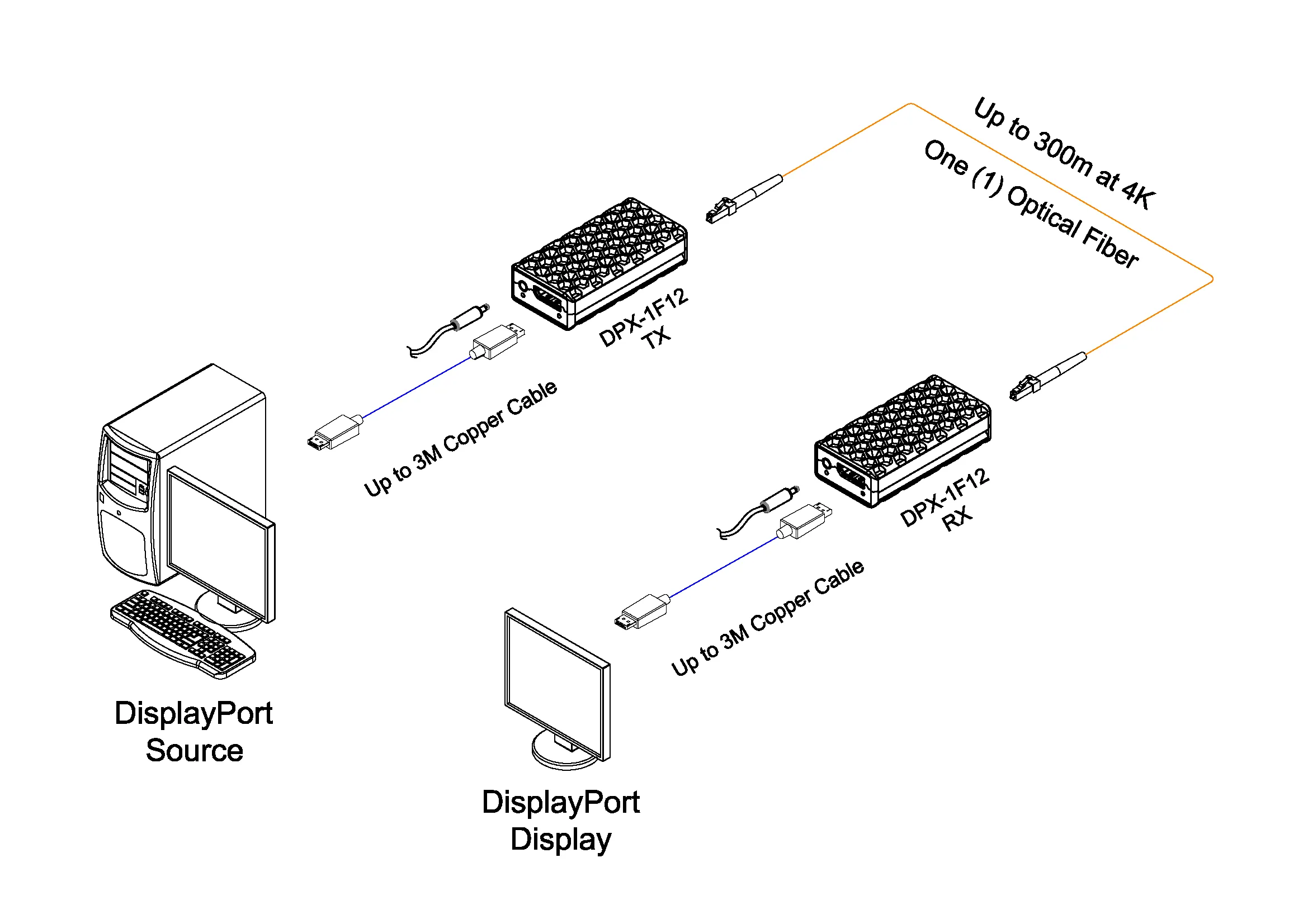

For flexible installation, the extender supports up to 3 meters of copper extension on both the transmitter and receiver sides, allowing deployment in confined or equipment-dense spaces where direct fiber termination is not practical.
A key differentiator of the DPX-1F12-TR is its integrated diagnostic and management capability. When used with the Opticis BR-600 Power Rack, the extender enables remote monitoring, centralized management, and real-time status diagnostics, helping operators detect issues early and minimize downtime. Firmware upgrades and diagnostics are managed through the Diagnosis Link Manager GUI, with one-step firmware upgrade support for up to eight units simultaneously.
The DPX-1F12-TR supports Multi-Stream Transport (MST), is firmware upgradable via USB Type-C, and complies with FCC and CE standards, making it a robust and future-ready solution for modern DisplayPort-based AV infrastructures.
Key advantages
Uncompressed DisplayPort over fiber
Transmits transparent DisplayPort 1.2 video up to 4096×2160 at 60Hz with no compression or signal degradation.
Long-distance DisplayPort extension
Extends DisplayPort signals up to 300 meters over a single LC fiber, far beyond copper DisplayPort limitations.
Integrated diagnostics and remote monitoring
Built-in diagnostic features enable real-time status monitoring and fault detection when used with the BR-600 power rack.
Centralized management at scale
Supports one-step firmware upgrades and centralized control of up to eight extenders via the BR-600 system.
Flexible installation options
Allows up to 3 meters of copper extension on both transmitter and receiver sides for tight or equipment-dense installations.
Secure, interference-free transmission
Fiber-based design provides electrical isolation with negligible EMI, ideal for sensitive AV environments.
Feature highlights
- Supports DisplayPort 1.2 standards
- Extends 4K UHD (4096×2160) at 60Hz
- Transmits DisplayPort signals up to 300m (984ft) over one LC multimode fiber (OM3)
- Uncompressed, transparent video transmission
- Supports Multi-Stream Transport (MST)
- Allows up to 3m copper extension on both TX and RX sides
- Built-in diagnostics and remote monitoring
- Diagnosis Link Manager GUI for status monitoring and firmware management
- Compatible with BR-600 Power Rack
- Centralized management of up to 8 units
- One-step firmware upgrade
- Firmware upgradable via USB Type-C
- Excellent data security with negligible EMI emission
- FCC and CE certified for EMI/RFI compliance
Applications
Where this solution fits.
Deploy in environments that need long-distance, interference-free connectivity with zero compression.
- Medical imaging systems
- Military and defense installations
- Digital signage networks
- Control rooms and command centers
- Flight simulation environments
- Rental and staging AV systems
Specifications
- Part Number
- DPX-1F12-TR
- Brand
- Opticis
- Product Type
- DisplayPort 1.2 Optical Extender with Diagnostics
- Fiber Type
- Single LC Multimode Fiber (OM3)
- Max Distance
- 300m / 984ft
- DisplayPort Standard
- DisplayPort 1.2
- Max Resolution
- 4096×2160 @ 60Hz
- MST Support
- Yes
- Copper Extension
- Up to 3m on TX and RX
- Diagnostics
- Remote monitoring and management
- Management Software
- Diagnosis Link Manager (GUI)
- Rack Compatibility
- BR-600 (up to 8 units)
- Firmware Upgrade
- USB Type-C
- EMI Emission
- Negligible
- Certifications
- FCC, CE
Downloads
Shipping group
- DisplayPort Optical Extender (Tx/Rx set)
- DC Power Adapter
- User Manual
- Copper cable
