Opticis DVDF-200 DVI to 1-Fiber DVI Converter | WUXGA 1920×1200 @ 60Hz • 500 m SC Multimode • Self-EDID • DVI Loop-Through
Send DVI up to WUXGA 1920×1200@60Hz over 1 SC multimode fiber up to 500 m with Self-EDID and DVI loop-through monitoring.
Part Number:
DVDF200 In stock Model
DVDF200
DVI (up to WUXGA)
1-fiber Optical DVI (SC multimode)
500 m at WUXGA @ 60Hz
Self-EDID (virtual DDC)
Opticis DVDF-200 DVI to Fiber DVI Converter | 500m SC Multimode WUXGA
Send DVI up to WUXGA 1920×1200@60Hz over 1 SC multimode fiber up to 500 m with Self-EDID and DVI loop-through monitoring.

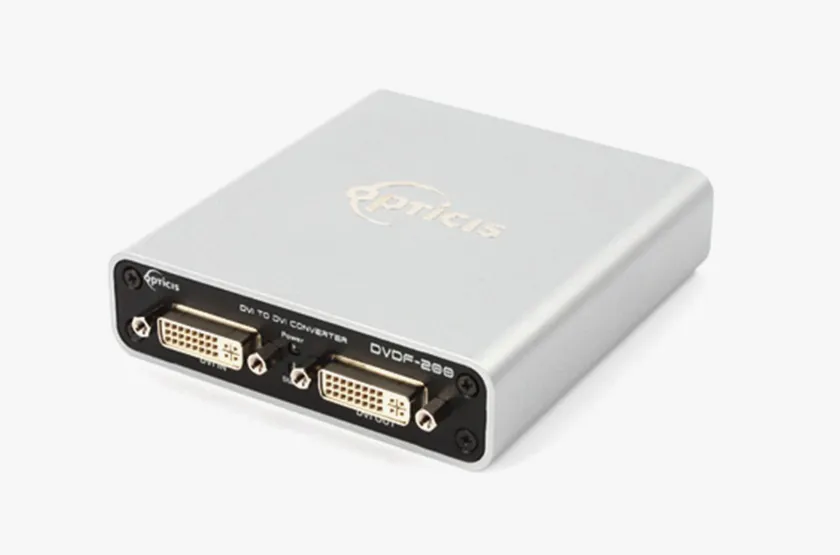

The Opticis DVDF-200 is a DVI to 1-fiber DVI converter that takes a standard DVI source and converts it into a single-core optical DVI signal for long-distance transmission over fiber.

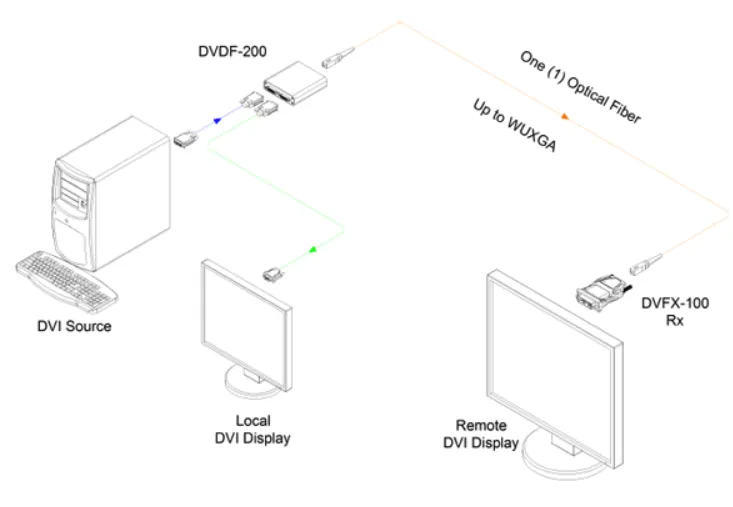

Designed for demanding AV and industrial installs, DVDF-200 supports uncompressed video up to WUXGA (1920×1200) @ 60Hz and extends the signal up to 500 meters (1,640 feet) over one (1) SC multimode fiber. At the far end, pair it with the Opticis DVFX-100-RX receiver to recover electrical DVI for the display.
To simplify setup across different displays and resolutions, DVDF-200 includes Self-EDID programming. It can read the EDID from the target display and store it in the converter so the source sees the correct display capabilities. A WUXGA EDID is preloaded at the factory as the default.
For on-site confidence checks, DVDF-200 also provides a DVI loop-through output for a local monitor while the optical link feeds the remote display.
Key advantages
Clean Long-Run DVI Over Fiber
Replace bulky copper runs with a single-core optical DVI link for stable WUXGA transmission up to 500 m.
Self-EDID for Fewer Black Screens
Read and store the target display EDID so the source negotiates the right timing and resolution reliably.
Local Monitoring Without Extra Gear
Use the built-in DVI loop-through to confirm the source signal on-site while the remote display runs over fiber.
Install Anywhere
Mount on VESA 75/100 surfaces with OPSCB or rack up to four units in 1RU using OPSCR-1U.
Field-Friendly Power
Locking 5V/3A power helps prevent accidental disconnects in racks and busy install areas.
Feature highlights
- Converts DVI input to one (1) fiber optical DVI output
- Extends uncompressed WUXGA (1920×1200) @ 60Hz up to 500 m (1,640 ft)
- Uses single-core SC multimode fiber (50/125 µm or 62.5/125 µm)
- Self-EDID programming (virtual DDC) for flexible display compatibility
- Factory default EDID: WUXGA (1920×1200) @ 60Hz
- DVI loop-through output for local monitoring
- Rack-mountable in 19” 1RU (up to 4 units with optional OPSCR-1U)
- Optional VESA 75/100 mounting bracket (OPSCB) for flexible placement
- Locking DC power input
- Certifications: CE / FCC, Class 1 Laser Eye Safety
Applications
Where this solution fits.
Deploy in environments that need long-distance, interference-free connectivity with zero compression.
- Control rooms and operations centers
- Industrial AV distribution and factory floors
- Medical imaging and diagnostic viewing
- Simulation, training, and signage systems
- Long-run DVI links where EMI and ground loops are a concern
Specifications
- Part Number
- DVDF-200
- Function
- DVI to 1-fiber DVI converter
- DVI Standard
- DVI 1.0 (DDC2B via virtual DDC / Self-EDID)
- Max Resolution / Refresh
- WUXGA (1920×1200) @ 60Hz
- Extension Limit
- 500 m (1,640 ft) at WUXGA @ 60Hz
- Bandwidth
- Up to 1.65 Gbps per graphic channel
- Supported Resolutions
- 480p, 720p, 1080p; VGA, SVGA, XGA, WXGA, SXGA, WXGA+, UXGA, WSXGA+, WUXGA
- Fiber / Connector
- Simplex SC, multimode (50/125 µm or 62.5/125 µm)
- Local Monitoring
- DVI OUT loop-through
- Power Output (Adapter)
- +5V DC, 3A (locking type)
- Operating Temp
- 0°C to 50°C
- Storage Temp
- -30°C to 70°C
- Humidity
- 10% to 85%
- Dimensions (W×D×H)
- 104 × 112 × 28 mm
- Certifications
- CE / FCC, Class 1 Laser Eye Safety
Downloads
Shipping group
- DVDF-200 converter (1 unit)
- AC/DC power adapter: **+5V / 3A**, locking type (1 unit)
- User manual
- Mounting Bracket: **OPSCB** (VESA 75/100)
- 19" 1RU Mounting Rack: **OPSCR-1U** (up to 4 units)
- Receiver (required for remote display): **DVFX-100-RX** (a.k.a. DVFX-100-R)
