Opticis HDX-1F20-TR HDMI 2.0 Fiber Extender | 4K60, 300m, Diagnostics
HDMI 2.0 optical extender supporting uncompressed 4K@60Hz over a single LC fiber up to 300m, with built-in diagnostics and remote management support.
Part Number:
HDX1F20TR In stock Model
HDX1F20TR
4K60
300m / 984ft
Single LC (OM3)
Diagnostics Enabled
Opticis HDMI 2.0 One-Fiber Optical Extender with Diagnostics, 4K60, 300m (HDX-1F20-TR)
HDMI 2.0 optical extender supporting uncompressed 4K@60Hz over a single LC fiber up to 300m, with built-in diagnostics and remote management support.

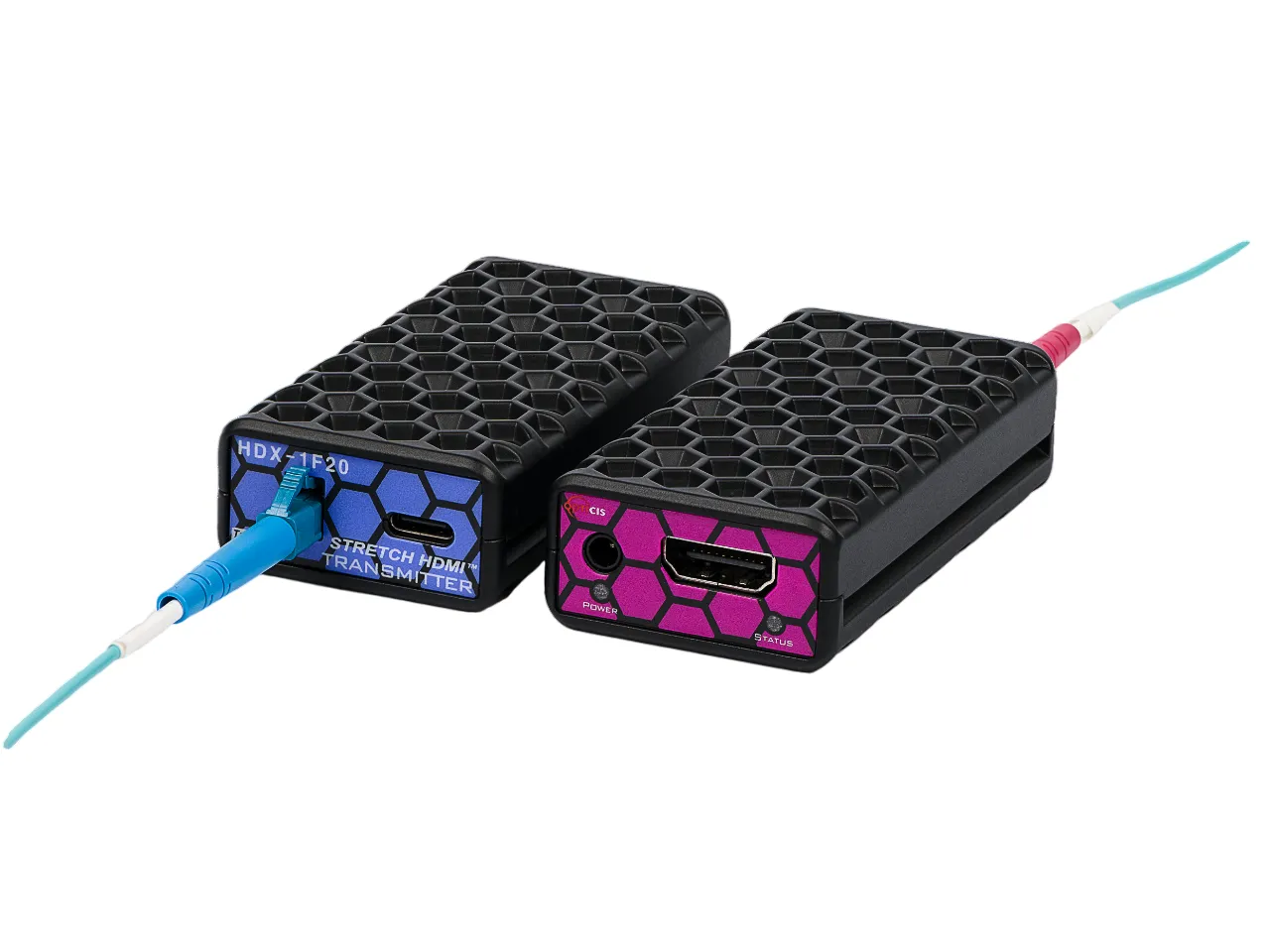

The Opticis HDX-1F20-TR is a high-performance HDMI 2.0 one-fiber optical extender designed to transmit uncompressed 4K UHD (4096×2160) video at 60Hz over long distances using a single LC multi-mode fiber (OM3).
Capable of extending HDMI signals up to 300 meters (984 feet), the HDX-1F20-TR delivers transparent, full-bandwidth HDMI 2.0 performance with negligible EMI emission, making it suitable for demanding professional AV environments.

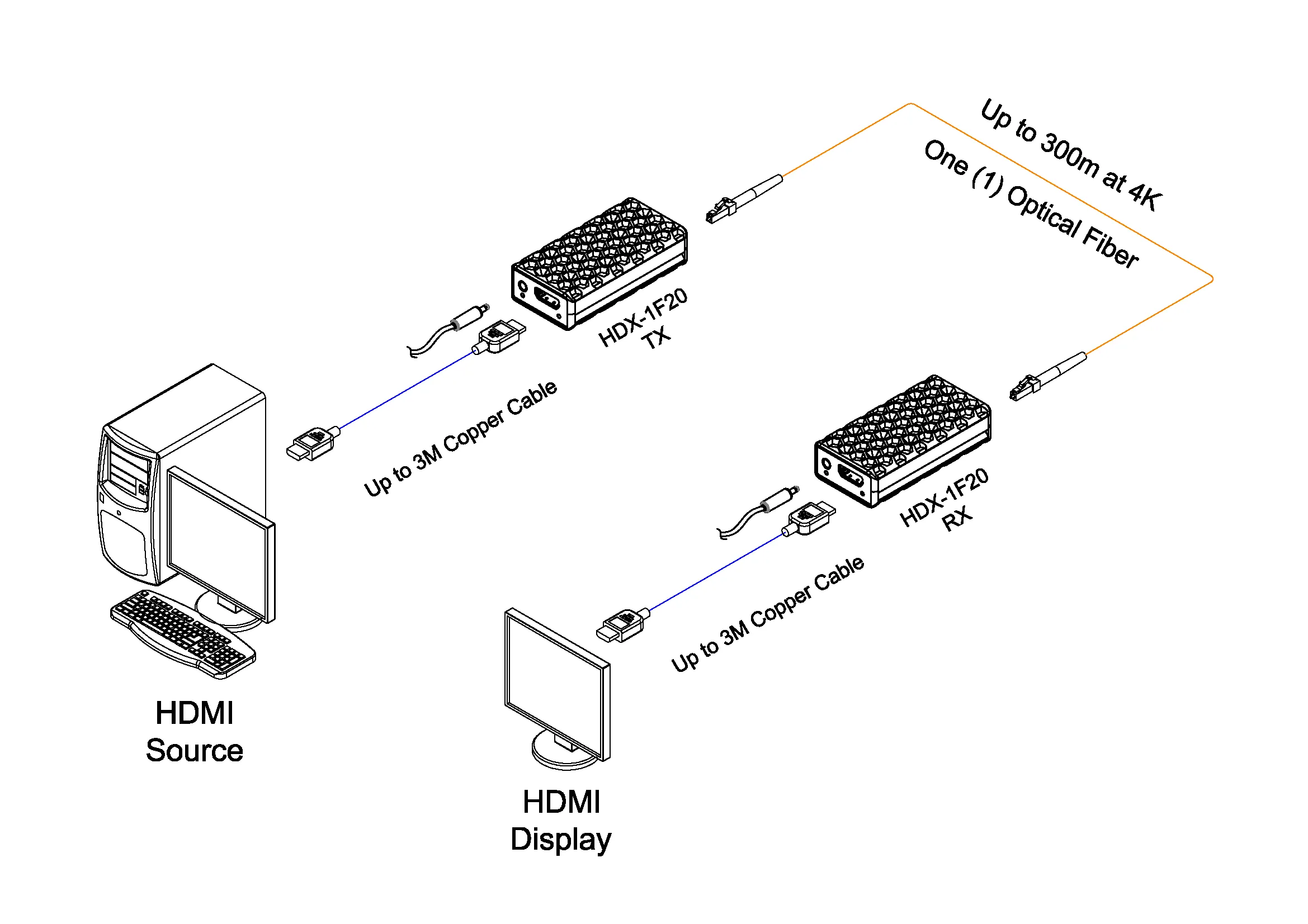

For flexible installation, the extender supports up to 3 meters of copper HDMI extension on both the transmitter and receiver sides, allowing deployment in confined or equipment-dense spaces where direct fiber termination may not be practical.
A key differentiator of the HDX-1F20-TR is its built-in diagnostic and management capability. When used with the Opticis BR-600 Power Rack, the extender supports remote monitoring, centralized management, and real-time status diagnostics, helping operators detect issues early and reduce system downtime. Firmware updates and diagnostics are managed via the Diagnosis Link Manager GUI, with one-step firmware upgrade support for up to eight units simultaneously.
The HDX-1F20-TR supports Audio Return Channel (ARC), is firmware upgradable via USB Type-C, and complies with FCC and CE standards, making it a robust and future-ready solution for modern AV infrastructures.
Key advantages
Uncompressed 4K HDMI over fiber
Delivers transparent HDMI 2.0 video up to 4096×2160 at 60Hz with no compression or signal loss.
Integrated diagnostics and remote monitoring
Built-in diagnostic features enable real-time status monitoring and fault detection when used with BR-600.
Centralized management at scale
Supports one-step firmware upgrades and management of up to eight extenders through the BR-600 power rack.
Flexible installation options
Allows up to 3 meters of copper HDMI extension on both transmitter and receiver sides for tight installations.
Low-interference, secure transmission
Fiber-based design provides electrical isolation with negligible EMI for stable operation in sensitive environments.
Future-ready maintenance
Firmware upgradable via USB Type-C using the Diagnosis Link Manager GUI.
Feature highlights
- Supports HDMI 2.0 standards
- Extends 4K UHD (4096×2160) at 60Hz
- Transmits HDMI signals up to 300m (984ft) over one LC multimode fiber (OM3)
- Uncompressed, transparent video transmission
- Supports Audio Return Channel (ARC)
- Allows up to 3m copper HDMI extension on both TX and RX sides
- Built-in diagnostics and remote monitoring
- Diagnosis Link Manager GUI for status monitoring and firmware management
- Compatible with BR-600 Power Rack
- Supports centralized management of up to 8 units
- One-step firmware upgrade
- Firmware upgradable via USB Type-C
- Excellent data security with negligible EMI emission
- FCC and CE certified for EMI/RFI compliance
Applications
Where this solution fits.
Deploy in environments that need long-distance, interference-free connectivity with zero compression.
- Medical imaging systems
- Military and defense installations
- Digital signage networks
- Control rooms and command centers
- Flight simulation environments
- Rental and staging AV systems
Specifications
- Part Number
- HDX-1F20-TR
- Brand
- Opticis
- Product Type
- HDMI 2.0 Optical Extender with Diagnostics
- Fiber Type
- Single LC Multimode Fiber (OM3)
- Max Distance
- 300m / 984ft
- HDMI Standard
- HDMI 2.0
- Max Resolution
- 4096×2160 @ 60Hz
- ARC Support
- Yes
- Copper Extension
- Up to 3m on TX and RX
- Diagnostics
- Remote monitoring and management
- Management Software
- Diagnosis Link Manager (GUI)
- Rack Compatibility
- BR-600 (up to 8 units)
- Firmware Upgrade
- USB Type-C
- EMI Emission
- Negligible
- Certifications
- FCC, CE
Downloads
Shipping group
- HDMI 2.0 Optical Extender (Tx/Rx set)
- DC Power Adapter
- User Manual
