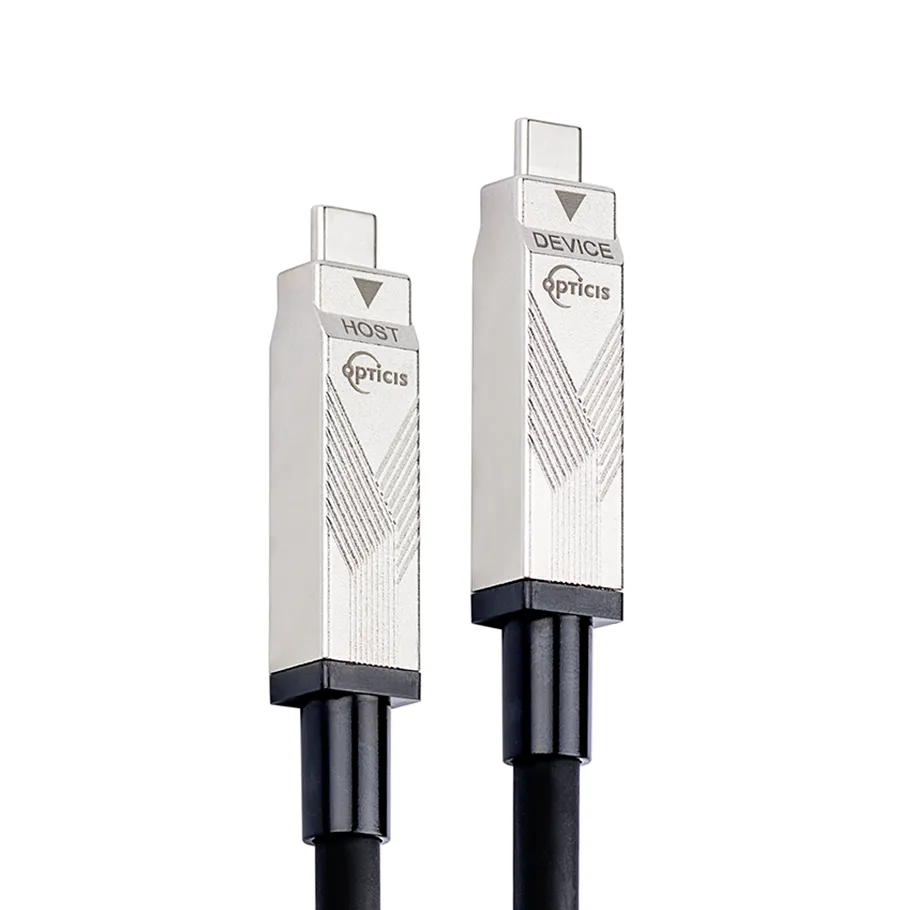

Opticis USB 3.2 Gen 2x1 Active Optical Cable, 10m/32ft (UL Certified)

Introducing the USB 3.2 Gen 2x1 Type-C Active Optical Cable (USC-CC32), a high-performance solution for transmitting SuperSpeed USB data at 10Gbps over distances up to 15 meters (50 feet). The USC-CC32 delivers up to 100W of power over a distance of 10 meters (33 feet) and up to 60W at 15 meters (50 feet), providing reliable power supply for webcams, laptops, and other devices. It is fully compatible with USB 2.0 and 1.1 standards, ensuring seamless integration with a wide range of devices through a single cable.

Supporting DisplayPort Alt Mode with 4K resolution at 60Hz across two DisplayPort lanes, the USC-CC32 is ideal for use in applications such as VR systems, laptops, 4K displays, and professional video systems.

The USC-CC32 features a curved connection terminal design that ensures a secure, interference-free connection when plugged into devices like monitors. An optional locking accessory further enhances connection stability by preventing accidental disconnections from the source or display.

Engineered for simultaneous operation of all key features, the USC-CC32 supports 10Gbps USB 3.2 data transfer, 100W power delivery, DisplayPort Alt Mode, and backward compatibility with USB 2.0 and 1.1, making it a versatile and reliable solution for modern connectivity needs.

• USB Type C Male to C Male Connector
• Supports SuperSpeed USB 3.2 Gen 2x1 (10Gbps) data up to 15m (50ft)
• Backward compatible to USB 2.0 and 1.1
• Provides power delivery 100W at 10m (33ft) or 60W at 15m (50ft)
• DisplayPort Alt mode supports up to 4K@60Hz (2 DisplayPort lanes, 8.1Gbps/lane)
• Plug and Play
• Designed to prevent ESD, EMI, and RFI
• No external power is required
• Connecting laptops, VR headsets, and other devices requiring high-speed data and power delivery.

1. What is the USC-CC32?
   The USC-CC32 is a USB 3.2 Gen 2x1 Type C Active Optical Cable designed for high-speed data transmission and power delivery over extended distances.
2. What is the maximum data transfer speed supported by the USC-CC32?
   The USC-CC32 supports SuperSpeed USB 3.2 Gen 2x1 data transfer speeds of up to 10Gbps.
3. What is the maximum distance the USC-CC32 can transmit data?
   The USC-CC32 can transmit data up to a maximum distance of 15 meters (50 feet).
4. What is the maximum power delivery capability of the USC-CC32?
   The USC-CC32 can deliver up to 100W of power at 10 meters (33 feet) or 60W at 15 meters (50 feet).
5. Does the USC-CC32 support DisplayPort Alternate Mode (DP Alt Mode)?
   Yes, the USC-CC32 supports DisplayPort Alt Mode, enabling video output up to 4K resolution at 60Hz refresh rate using two DisplayPort lanes.
6. Is the USC-CC32 backward compatible with older USB standards?
   Yes, the USC-CC32 is backward compatible with USB 2.0 and USB 1.1 standards.
7. What are the applications of the USC-CC32?
   The USC-CC32 is suitable for various applications including:
   • Connecting laptops, VR headsets, and other devices requiring high-speed data and power delivery.
   • Broadcasting and audio systems.
   • Meeting and conference rooms.
   • Educational and security systems.
8. Does the USC-CC32 require any external power supply?
   No, the USC-CC32 is a plug-and-play cable and does not require any external power supply.
