Opticis USC-CC32-15 Active Optical USB-C Cable | USB 3.2 Gen 2x1 10Gbps, UL
UL-certified Opticis USB-C active optical cable supporting USB 3.2 Gen 2x1 (10Gbps), DisplayPort Alt Mode 4K@60Hz, and up to 100W power delivery at 10m.
In stock SKU
USC-CC32-10UL
$475.00USD
Model
USCCC32UL
10Gbps
Up to 100W
4K@60Hz
Up to 15m
Opticis USB 3.2 Gen 2x1 Active Optical USB-C Cable, UL Certified
UL-certified Opticis USB-C active optical cable supporting USB 3.2 Gen 2x1 (10Gbps), DisplayPort Alt Mode 4K@60Hz, and up to 100W power delivery at 10m.

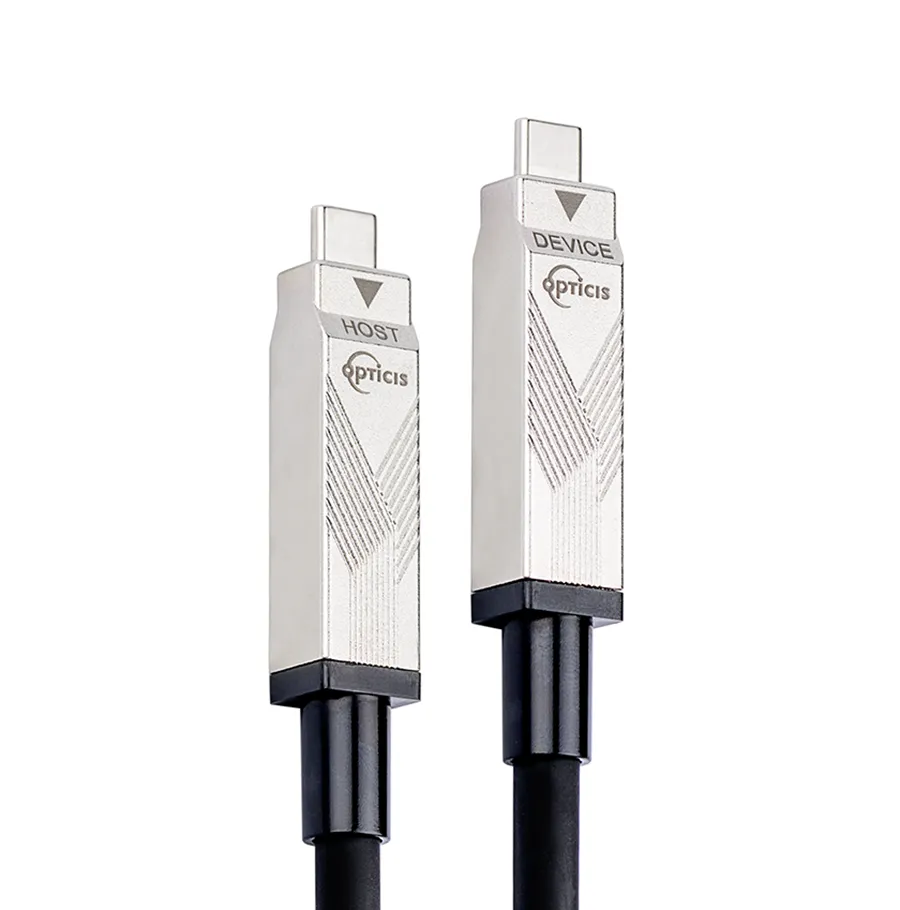

The Opticis USC-CC32-XX is a USB 3.2 Gen 2x1 Type-C Active Optical Cable (AOC) designed for high-speed data, video, and power delivery over extended distances of up to 15 meters (49 feet).
Supporting SuperSpeed USB at 10Gbps, the USC-CC32-XX also delivers up to 100W of USB Power Delivery at 15m, making it suitable for powering and charging laptops, webcams, and other USB-C devices through a single cable. It is fully backward compatible with USB 2.0 and USB 1.1, ensuring seamless integration with legacy devices.
In addition to data and power, the cable supports DisplayPort Alt Mode, enabling video output up to 4K resolution at 60Hz using two DisplayPort lanes. This makes the USC-CC32-XX ideal for VR systems, laptops, 4K displays, and professional video applications.
The cable features a curved connection terminal to minimize mechanical interference when connected to displays and includes support for an optional locking accessory to prevent accidental disconnection. Designed for simultaneous operation of data transfer, power delivery, video, and backward compatibility, the USC-CC32-XX is a reliable solution for modern USB-C connectivity requirements.
Key advantages
Simultaneous data, power, and video
Supports USB 3.2 Gen 2x1 data at 10Gbps, USB Power Delivery, and DisplayPort Alt Mode at the same time over a single cable.
High-power USB-C over distance
Delivers up to 100W at 10m and 60W at 15m, enabling long-distance power and data for laptops, webcams, and peripherals.
4K DisplayPort Alt Mode support
Supports DisplayPort Alt Mode up to 4K at 60Hz using two DisplayPort lanes for displays, VR systems, and video equipment.
Backward compatibility
Fully compatible with USB 2.0 and USB 1.1 devices, allowing mixed-generation USB peripherals on a single cable.
Secure and interference-free connection
Curved connector design prevents mechanical interference, while optional locking accessory reduces accidental unplugging.
Reliable operation in demanding environments
Designed to mitigate ESD, EMI, and RFI with no external power supply required.
Feature highlights
- USB 3.2 Gen 2x1 (10Gbps) data transfer
- USB Type-C male to Type-C male
- Supports USB Power Delivery up to 100W at 10m (32ft)
- DisplayPort Alt Mode support up to 4K@60Hz
- Backward compatible with USB 2.0 and USB 1.1
- Designed for simultaneous data, power, and video operation
- Plug and Play
- No external power required
- Designed to help prevent ESD, EMI, and RFI
- Curved terminal design for reduced port interference
- Optional locking accessory for secure connections
- UL Certified cable
Applications
Where this solution fits.
Deploy in environments that need long-distance, interference-free connectivity with zero compression.
- Laptops and docking stations
- VR headsets and immersive systems
- 4K monitors and displays
- Professional video systems
- Meeting and conference rooms
- Educational and security installations
Specifications
- Part Number
- USC-CC32-XX
- Brand
- Opticis
- Product Type
- USB-C Active Optical Cable (AOC)
- USB Standard
- USB 3.2 Gen 2x1
- Max Data Rate
- Up to 10Gbps
- Connector Type
- USB Type-C Male to USB Type-C Male
- Backward Compatibility
- USB 2.0 / USB 1.1
- USB Power Delivery
- Up to 100W at 10m
- Display Support
- DisplayPort Alt Mode
- Max Video
- Up to 4K @ 60Hz (2 DP lanes, 8.1Gbps/lane)
- External Power
- Not required
- Cable Certification
- UL Certified
- EMI / ESD / RFI
- Designed to help mitigate interference
- Installation
- Plug and Play
- Connection Features
- Curved terminal; optional locking accessory
